The Soxhlet extractor is a widely used apparatus in laboratory settings for the efficient extraction of compounds from solid materials. It operates on the principles of solvent reflux and siphoning, enabling repeated contact between the solid sample and the solvent, which significantly enhances the extraction efficiency. This device is ideal for processing multiple samples simultaneously, with each heating unit being independently adjustable to accommodate different experimental conditions. The ability to repeat experiments under identical conditions not only saves time but also improves overall work efficiency.

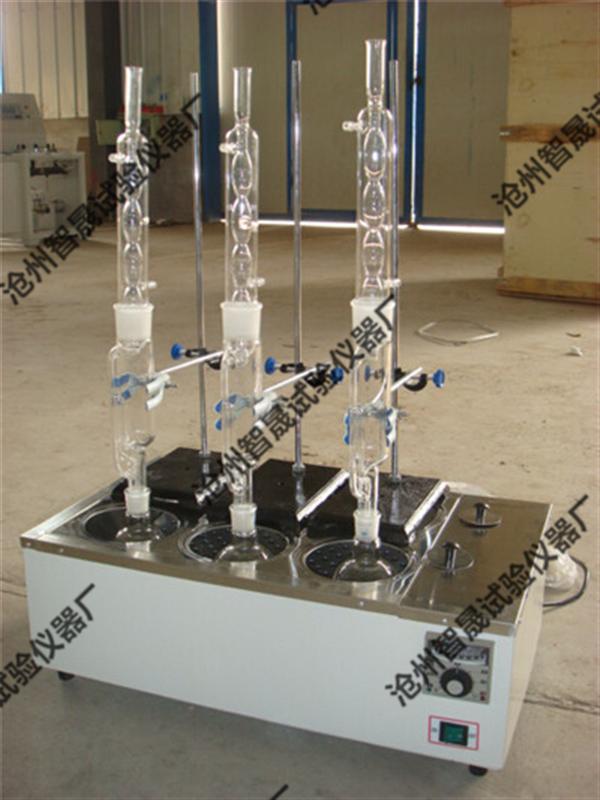

The Soxhlet extractor consists of three main components: an extraction bottle, an extraction tube, and a condenser. The extraction tube is equipped with siphons and connecting pipes on both sides, ensuring that all joints are tightly sealed to prevent any leakage. The use of pure solvent during each cycle ensures that the extraction process remains effective and that the desired compounds are efficiently concentrated in the extraction bottle.
**Main Technical Parameters:**
- Number of samples per batch: 3
- Extraction bottle volume: 500 ml per unit
- Solvent can be automatically recycled
- Power supply voltage: 220V
- Electric heating power: 300W
**Reagents Used:**
Anhydrous ether or low-boiling-point petroleum ether (AR grade) is typically used as the extraction solvent. These solvents are chosen for their ability to dissolve the target compounds effectively while being compatible with the equipment.
**Operating Instructions:**
1. Before extraction, the solid material should be finely ground to increase the surface area exposed to the solvent. Place the sample into a filter paper bag and insert it into the extraction chamber. When the solvent is heated, vapor rises through the air tube, condenses in the condenser, and drips into the extractor. Once the liquid level surpasses the siphon’s highest point, the solvent flows back into the flask, carrying the dissolved compounds with it. This continuous cycle ensures maximum extraction efficiency.
2. For optimal results, pack the sample in a degreased filter paper bag and place it in the extraction tube. Add petroleum ether to the extraction bottle and begin heating. As the solvent evaporates, it travels up the connecting tube, condenses in the condenser, and flows into the extraction tube. The solvent then dissolves the target compounds and is siphoned back into the flask, repeating the process until the extraction is complete.
3. Prepare the filter paper into a cylindrical shape that fits the extractor. Place the sample inside and ensure the filter paper tube is positioned close to the walls for easy removal. Secure the top with a cotton thread for convenience. The height of the extract must not exceed the siphon to avoid incomplete soaking. Ensure no leakage occurs to prevent blockage of the siphon. If the sample is light, gently press it with cotton wool to maintain stability.
4. Add the solvent and a small amount of zeolite or glass beads to the flask to prevent bumping during the heating process. Avoid using glassware that could shatter due to thermal stress.
5. The duration of the extraction depends on the nature of the sample. Some extractions may continue until the extract becomes colorless, indicating complete extraction. Once finished, turn off the heater, allow the system to cool, and remove the Soxhlet extractor. Install a condenser for further distillation if necessary.
