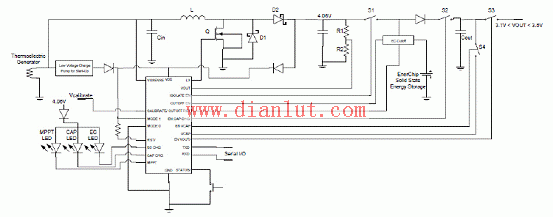

Below is the circuit diagram of the [CBC915 EnerChip EP Energy Harvesting Application Circuit].
The CBC915 is an advanced EnerChip EP energy processor designed for energy harvesting applications. It utilizes sophisticated maximum power point tracking (MPPT) algorithms to efficiently capture energy from various sources such as light, vibration, heat, and RF. The device also features temperature-compensated charge control, built-in energy storage protection, adjustable output voltage, and low standby power consumption. It operates reliably within a wide temperature range of -20°C to +70°C, making it suitable for a variety of industrial and environmental conditions.

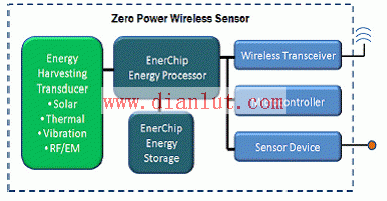

Figure 1. Key Features of the CBC915 Energy Processor Application Circuit. The CBC-EVAL-09 is a versatile energy harvesting (EH) evaluation kit that allows users to test and develop energy harvesting systems using different transducers. It integrates the EnerChip™ EP CBC915-ACA Energy Processor with the EnerChip CBC51100 100µAh solid-state battery module, which consists of two 50µAh EnerChip batteries connected in parallel. This platform is ideal for engineers looking to prototype and optimize energy harvesting solutions quickly and efficiently.

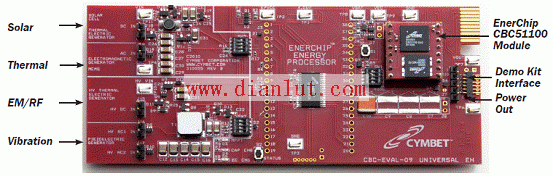

Figure 2. CBC-EVAL-09 Demo Board Outline Drawing

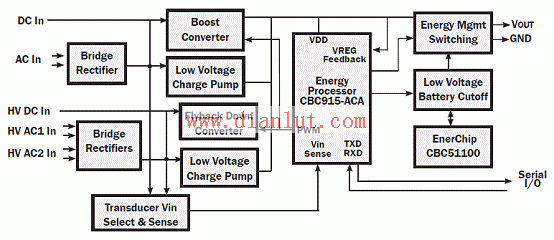

Figure 3. CBC-EVAL-09 Demo Board Block Diagram

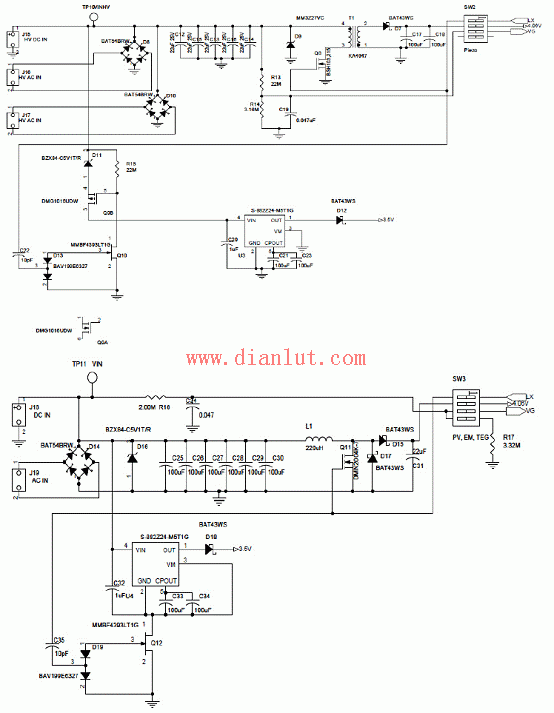

Figure 4. CBC-EVAL-09 Demonstration Board Circuit Diagram (1)

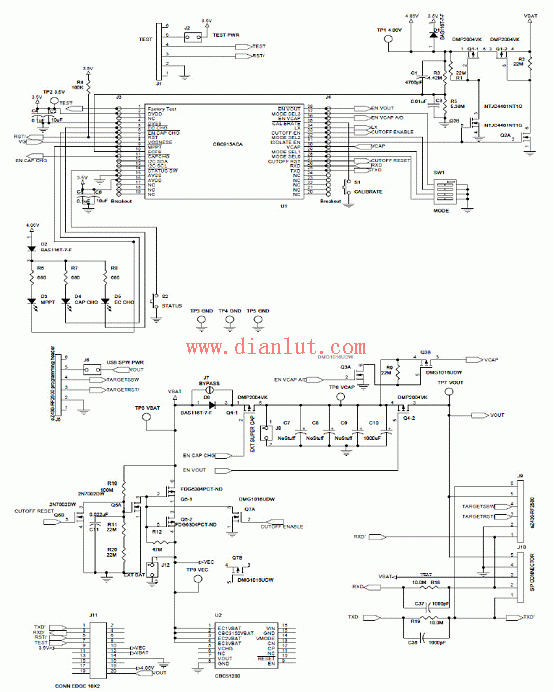

Figure 5. CBC-EVAL-09 Demonstration Board Circuit Diagram (2) CBC-EVAL-09 Motherboard Bill of Materials:
